| Place of Origin: | China |
|---|---|
| Brand Name: | HUIFENG |
| Model Number: | WCP-70 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Delivery Time: | Normally 20 to 30days |
| Payment Terms: | L/C, T/T |
| Standard: | API 6A | Pressure Level: | 21MPa～105MPa（3000psi～15000psi） |
|---|---|---|---|
| MOQ: | 1PCS | Temperature: | -60℃(～180℃(K-X) |
| Highlight: | API 6A Wellhead Control Panel,API 6A hydraulic wellhead control panel,hydraulic wellhead control panel Remote control |
||

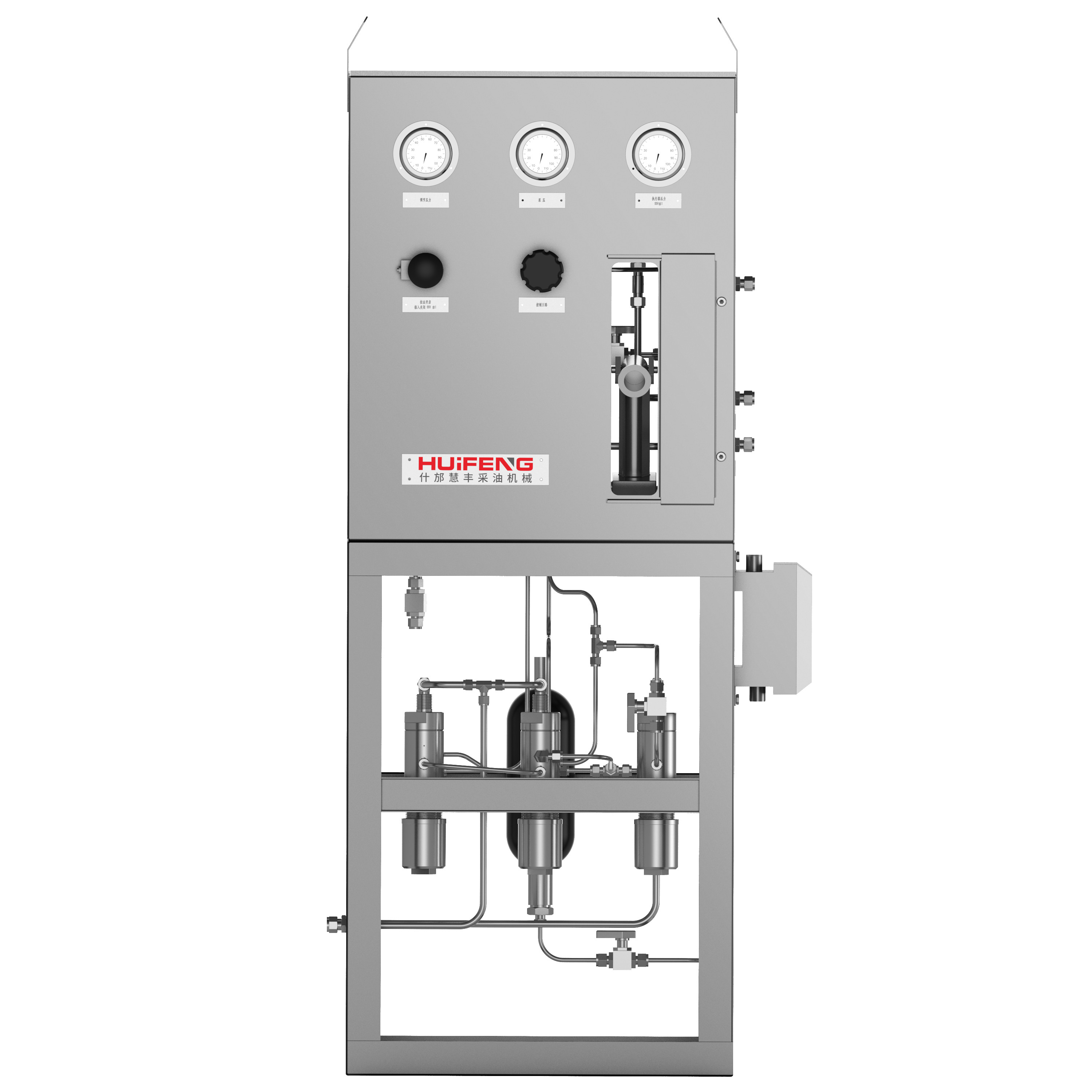

one to one control system Wellhead Control Panel
Product Introduction
High pressure oil enter into the empty cavity of upper operator, and compress the spring of lower operator to open the valve,when the wellhead equipments suffer from dangerous pressure, control system relief the pressure of cylinder after receiving the signal sent by sensor,spring push stem to close valve and wellhead equipments, ensure the equipment safety.
Product Function
| The high voltage sensing device found that the high voltage exceeded the limit. |
| Low pressure sensor found low pressure exceeded limit. |
| ESD emergency shutdown. |
| Control the fire alarm on the circuit to melt. |
| Remote control |
| Control method:Hydraulic,Pneumatic |
Quality control
In order to achieve product traceability, the company has developed control documents such as "Implementation Measures for Part Traceability", "Product Identification Management Operation Procedure", "Control Measures for Product" Quality Card of Main Parts ", and" Product Identification Specification "in accordance with the" Product Production and Service Process Control Procedure ", which specify traceability control requirements in detail.A "Quality Card for Main Parts" has been developed for pressure parts, pressure control parts, and non-metallic sealing parts. Each part corresponds to a quality card, which can be traced back to the raw material furnace batch number, heat treatment batch number, and the entire production process of the parts through the "part number".
