| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HUIFENG |
| Minimum Order Quantity: | I Set |
| Price: | Negotiable |
| Delivery Time: | Normally 20 to 30days |
| Payment Terms: | L/C, T/T |
| Material Grade: | DD-HH | Temperature Level: | L-X(-46℃~180℃） |
|---|---|---|---|
| Speciflcation Level: | PSL3-4 | Performance Requirements: | PR1,PR2 |
| Pressure Level: | 21MPa～140MPa | Nominal Diameter: | 52～130mm |
| Highlight: | AA-HH Drilling Manifold,hydraulic kill and choke manifold,140MPa Kill And Choke Manifold |
||

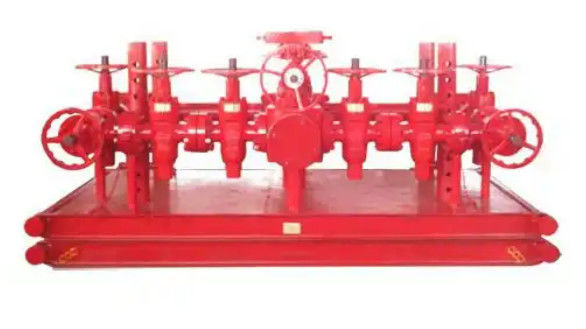

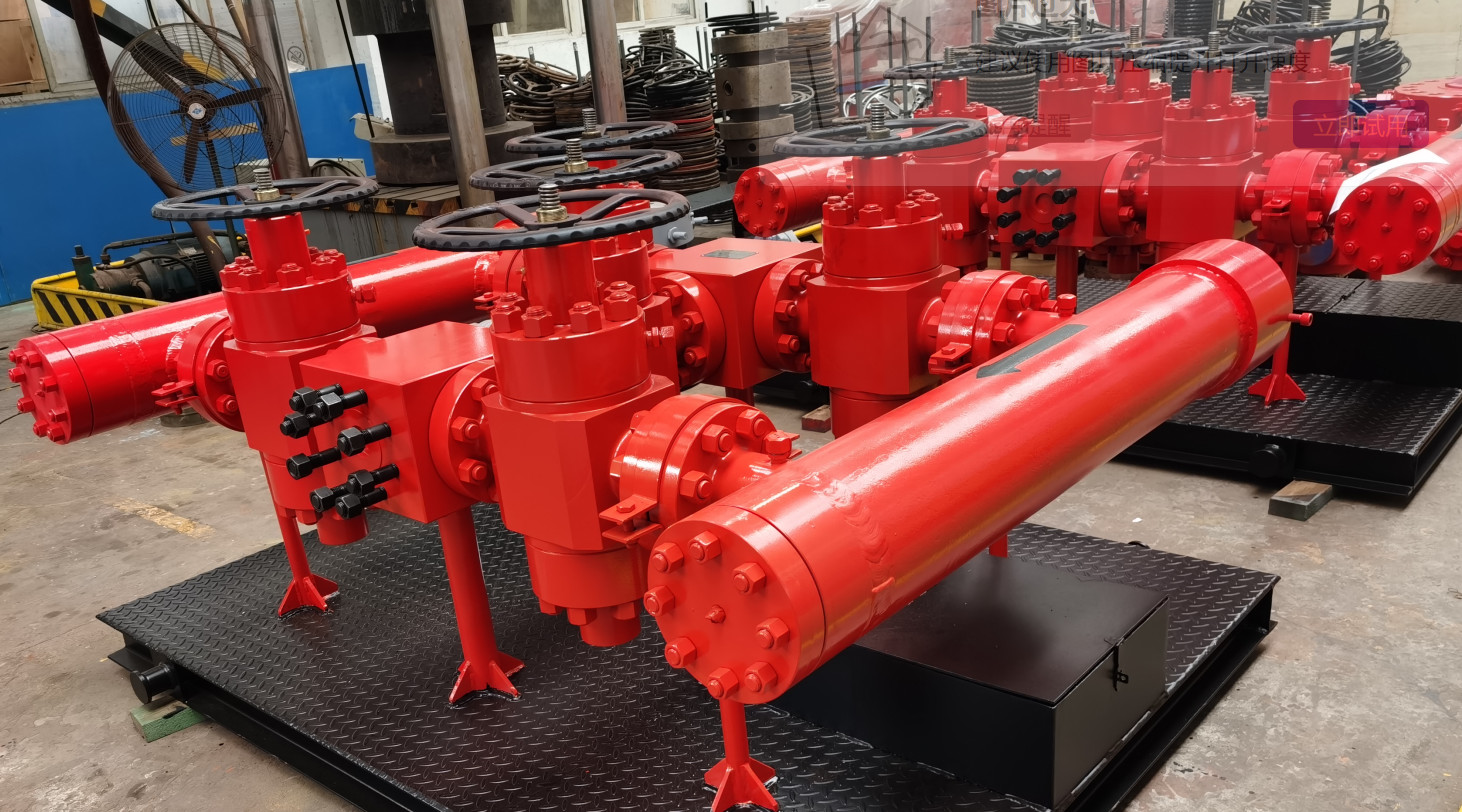

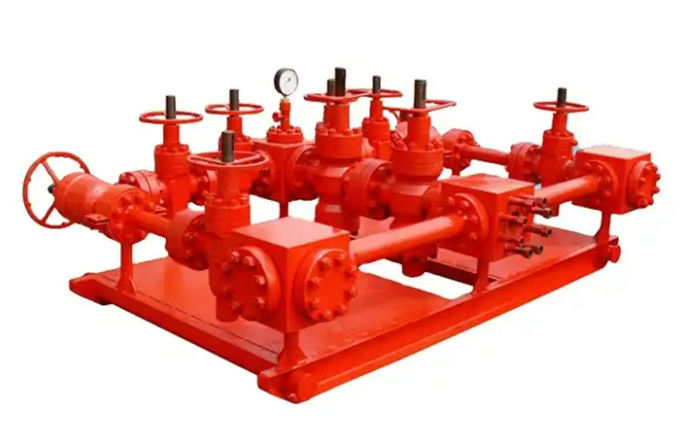

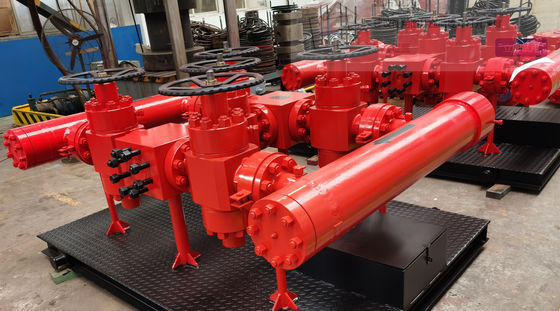

AA～HH Drilling Manifold 21MPa～140MPa
Product Introduction
Choke manifold wellhead equipment / oil drilling equipment / hydraulic kill and choke manifold consists of four manual gate valves (five gate valves if a bypass valve is included). It is the necessary equipment to control the flow rate and reduces well pressure before the flow enters the processing equipment for protecting the well. It can be equipped with hydraulic control panel for remote control.
Technical Parameters
| Material Grade | DD-HH |
| Temperature Level | L-X(-46℃~180℃) |
| Speciflcation Level | PSL3-4 |
| Performance Requirements | PR1,PR2 |
| Pressure Level | 21MPa～140MPa |
| Nominal Diameter | 52～130mm |
Quality and Safety Assurance
1.Raw material guarantee:
The pressure bearing parts of the product body are integrally forged to ensure that the material of the product meets technical specifications.
2.Non destructive testing assurance:
Perform two ultrasonic tests before and after heat treatment to ensure that the pressure bearing parts of the product body are free from defects.
3.Heat treatment guarantee:
Adopting advanced heat treatment equipment and strictly following heat treatment specifications to ensure the mechanical properties of the product.
4.Processing accuracy assurance:
Adopting advanced CNC machining centers for machining to ensure the machining accuracy of products.
